Description
Product Overview

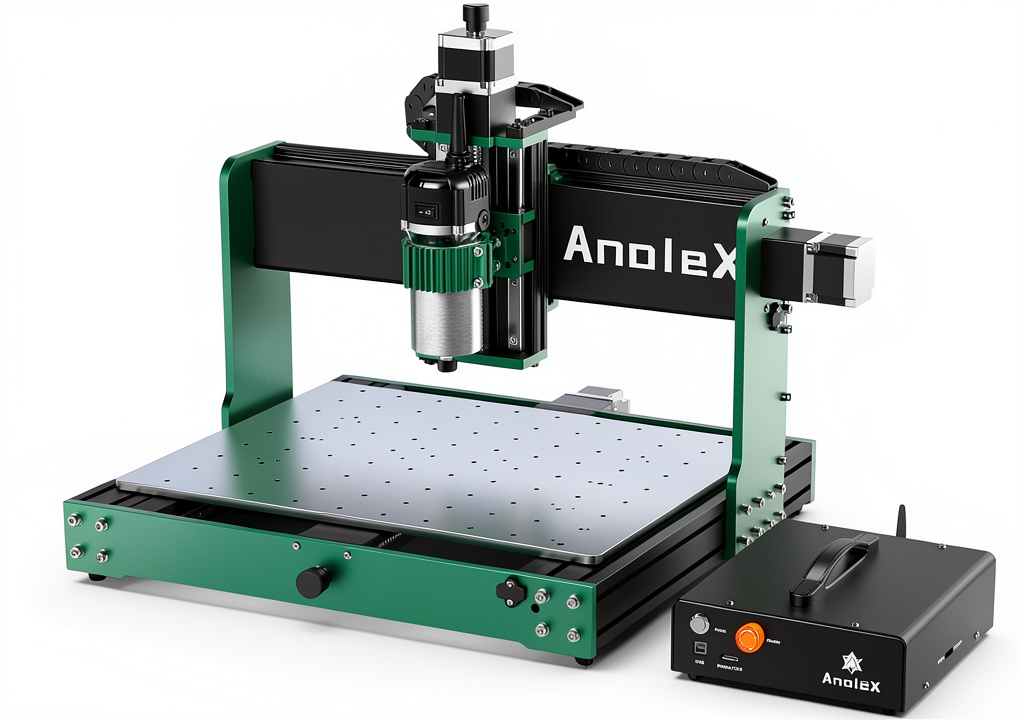

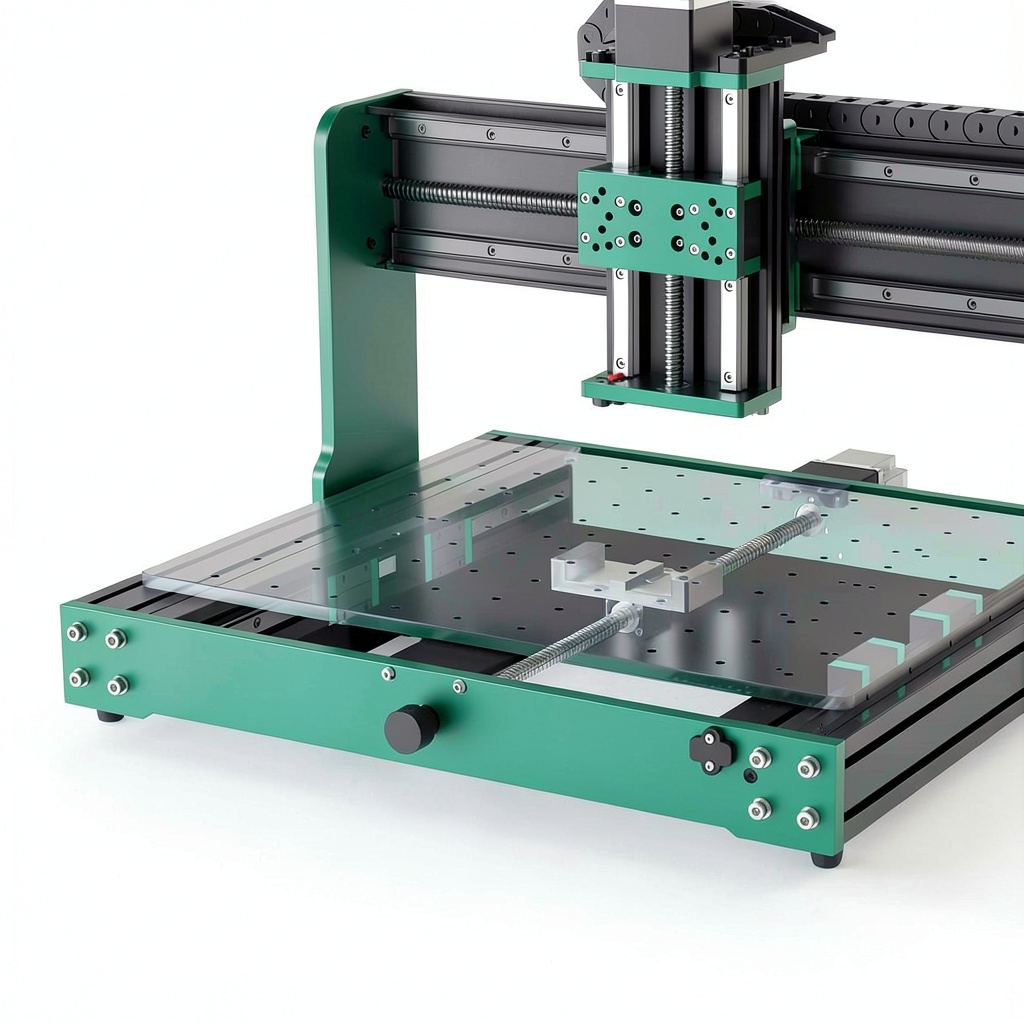

The AnoleX 4030-Evo Ultra2 is engineered as a high‑performance CNC router machine that brings industrial‑grade capabilities to the compact workshop. Its all‑metal XYZ axis construction utilizes dual HGH‑15 steel linear guides on each axis, delivering exceptional rigidity and smooth motion even under heavy cutting loads. The integrated 1204 ball screws provide precise positioning with minimal backlash, ensuring repeatable accuracy across a wide range of materials.

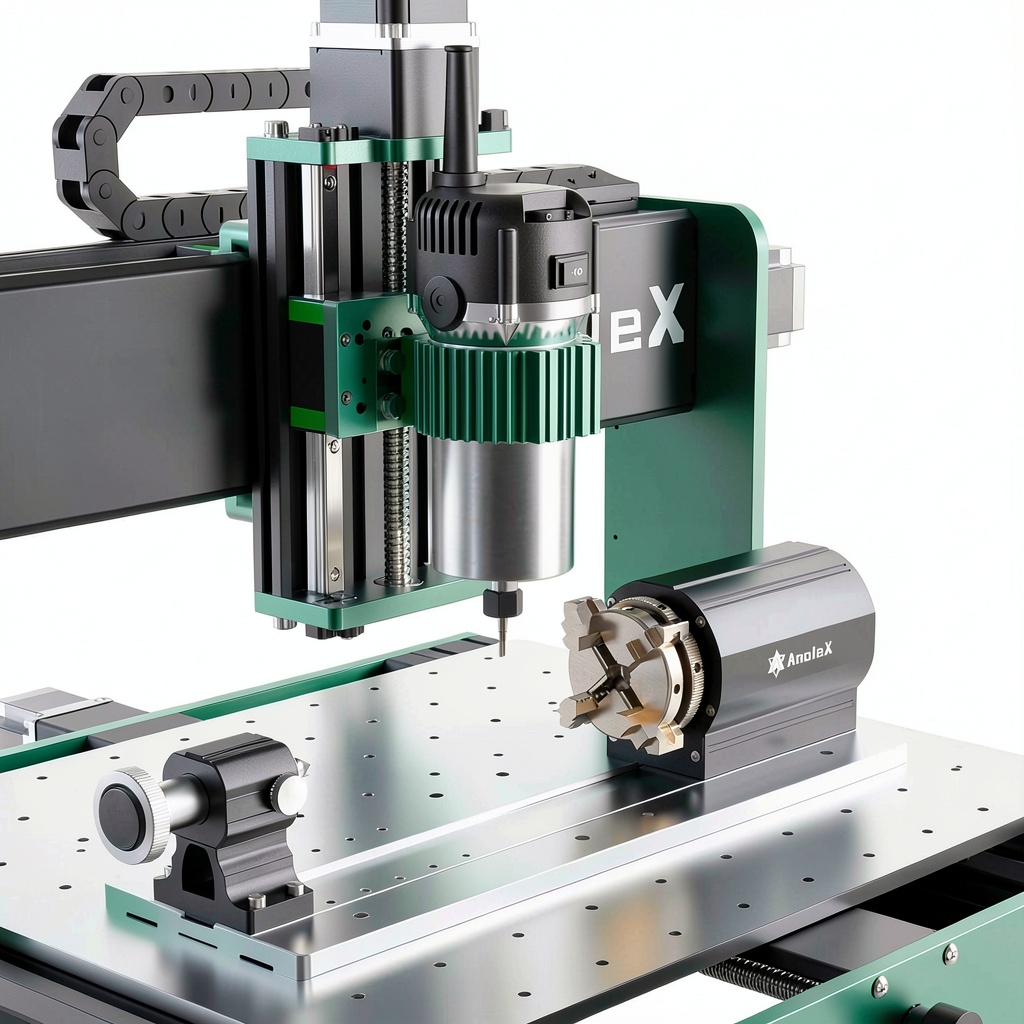

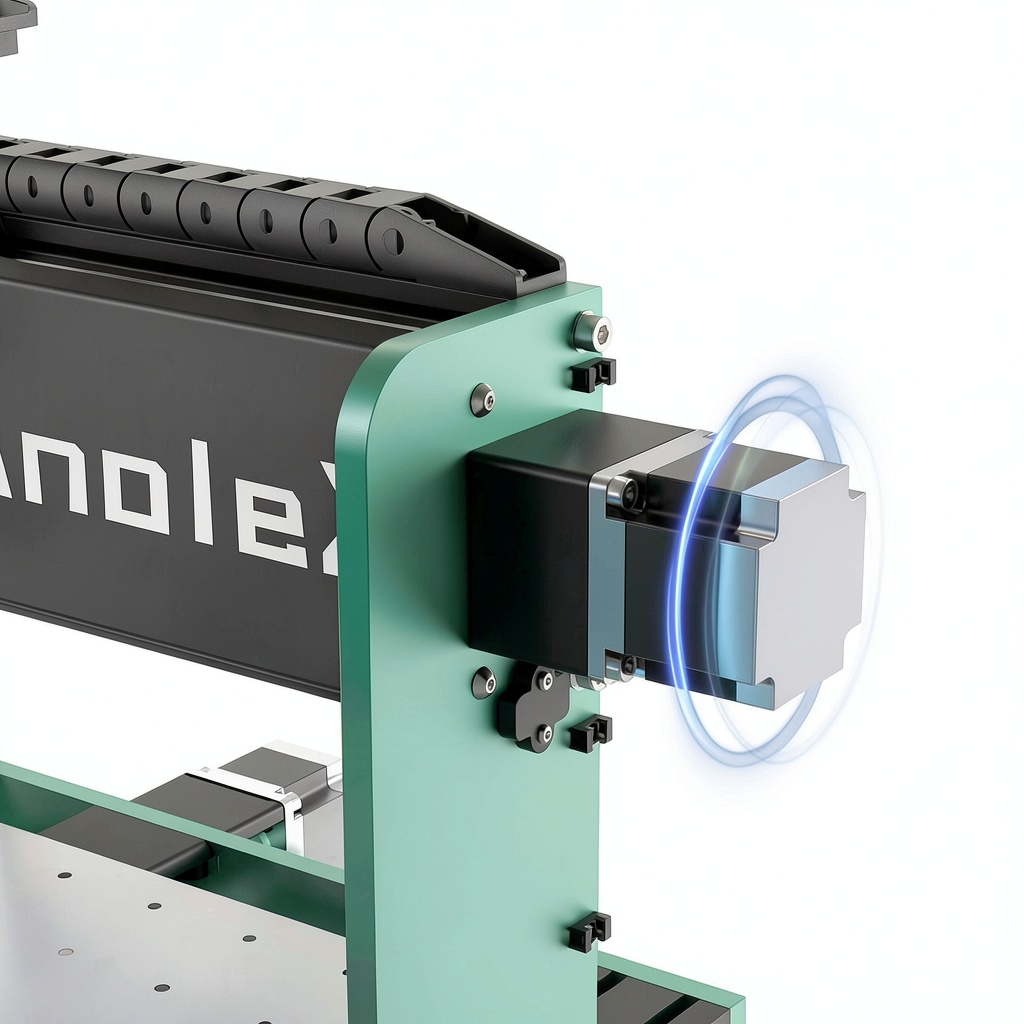

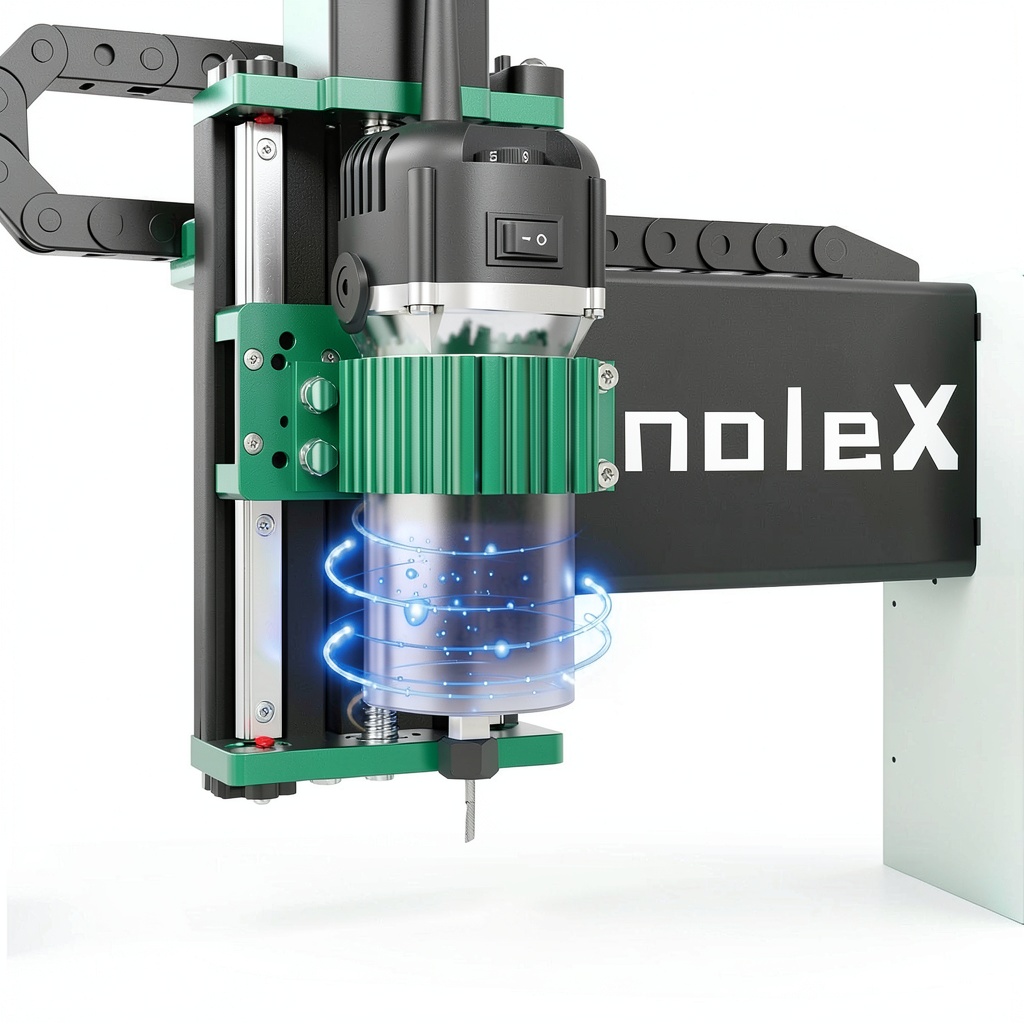

Powering the system is an 800W trim router equipped with an ER11‑1/8″ collet and a six‑speed range from 8,000 to 24,000 RPM. This high‑speed capability allows users to tackle thin sheets of aluminum, brass, and copper as well as dense hardwoods and acrylic without sacrificing surface finish quality. The router’s robust motor, paired with Nema 23 stepper motors rated at 2.8 A and 1.2 N·m torque, delivers consistent torque throughout the speed range, reducing the risk of stalling during demanding operations.

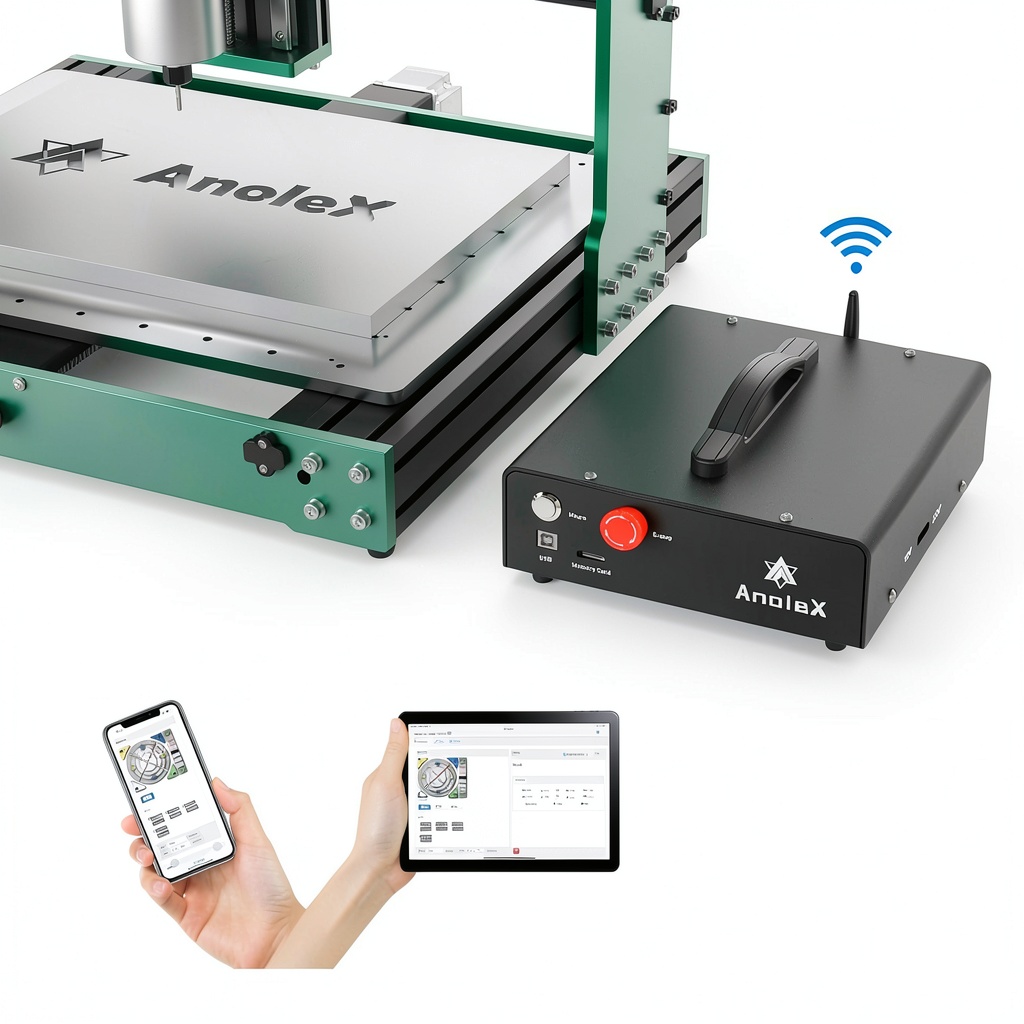

Connectivity is modern and flexible. A built‑in 32‑bit MCU runs the latest GRBL 1.3a firmware on an ESP32 platform, providing Wi‑Fi access through the ESP3D Web UI. Users can control the machine from a PC, laptop, tablet, or smartphone without the need for a USB cable, enabling remote monitoring, job queuing, and real‑time adjustments. The firmware also supports advanced features such as laser engraving, a fourth rotary axis, and coolant control via M07/M08 commands.
Designed for ease of assembly, the CNC kit arrives with major components pre‑assembled, clear cable management, and a comprehensive paper manual supplemented by an instructional video. The modular design allows for straightforward upgrades or replacements of stepper motors, drivers, or the router head, extending the machine’s lifespan and adaptability to future project requirements.
Safety and reliability are built into the system. XYZ dual limit switches, a dedicated home switch, and an emergency stop button provide multiple layers of protection during operation. The machine’s base is a fixed, heavy‑duty aluminum frame weighing 38 kg (approximately 84 lb), which minimizes vibration and enhances stability on the workbench.
Overall, the AnoleX 4030‑Evo Ultra2 offers a balanced combination of power, precision, and user‑friendly features that make it suitable for both seasoned professionals and enthusiastic makers seeking a versatile milling solution.
Usage
In a small workshop or maker space, the CNC router excels at producing custom parts for electronics enclosures, automotive components, and artistic installations. Its ability to cut and engrave PCBs, acrylic signage, and metal brackets makes it a valuable tool for prototyping and low‑volume production runs. The Wi‑Fi enabled control interface allows users to launch jobs directly from design software such as Fusion 360, VCarve, or LightBurn, streamlining the workflow from CAD to finished part.
For hobbyists interested in woodworking, the router’s high RPM range and sharp carbide‑tipped bits enable clean, detailed carving of intricate patterns on hardwoods, plywood, and MDF. The interchangeable collet system supports a variety of bit diameters, giving creators the flexibility to switch between fine detail work and larger material removal without extensive downtime.
Educational institutions can integrate the machine into STEM curricula, teaching students about CNC technology, computer‑controlled manufacturing, and the fundamentals of motion control. The open‑source GRBL firmware encourages experimentation, while the safety features ensure a secure learning environment.
Professional fabricators can use the router for precision metal milling, taking advantage of the dual steel linear guides and ball screws to achieve tolerances suitable for aerospace or automotive parts. The machine’s robust construction tolerates continuous operation, and the optional coolant control expands its capability to handle heat‑sensitive materials.
Because the system is compatible with Windows, Linux, and macOS, users can select their preferred software stack without hardware constraints. Whether operating from a desktop workstation or a tablet on the shop floor, the router adapts to the user’s workflow, delivering consistent results across diverse applications.
Why Choose Us
Choosing the AnoleX 4030‑Evo Ultra2 means investing in a machine built with premium materials and engineered for longevity. The all‑metal frame and dual steel linear guides provide a level of rigidity typically found in larger industrial CNC systems, reducing vibration and ensuring high‑quality surface finishes even at elevated cutting speeds.
Our commitment to customer support extends beyond the point of sale. Every unit includes a detailed assembly guide, a step‑by‑step video tutorial, and access to a dedicated technical support team ready to assist with setup, troubleshooting, and optimization. We also offer firmware updates and a community forum where users share projects, tips, and custom macros.
Quality assurance is integral to our manufacturing process. Each router undergoes rigorous testing for dimensional accuracy, motor performance, and electrical safety before leaving the factory. The result is a reliable machine that meets or exceeds industry standards for CNC equipment.
Flexibility is another hallmark of the design. The modular architecture allows for easy upgrades, such as swapping the standard router head for a laser module or adding a fourth rotary axis for complex 3‑D engraving tasks. This future‑proof approach ensures the machine can evolve alongside your growing skill set and project demands.
Finally, our transparent pricing model provides a high‑value solution without hidden costs. The included CNC router kit contains all essential components, and the optional accessories are clearly listed, enabling you to budget accurately and avoid surprise expenses.
Key Features
- 800W high‑speed trim router delivers up to 24,000 RPM for fast, clean cuts across metal, wood, and acrylic.
- Dual steel linear guides and ball screws provide exceptional rigidity and precision for demanding milling tasks.
- Nema 23 stepper motors with closed‑loop capability ensure consistent torque and reliable performance.
- Wi‑Fi enabled ESP32 controller runs GRBL 1.3a firmware, allowing PC, tablet, or smartphone operation without cables.
- Comprehensive customer support, detailed manuals, and video tutorials simplify setup and guarantee ongoing assistance.
FAQ
What materials can the CNC router cut?
The machine is capable of cutting a wide range of materials including aluminum, brass, steel, wood, plywood, MDF, acrylic, and printed circuit boards. By selecting the appropriate bit and adjusting the speed settings, users can achieve clean cuts and fine engravings on each material type.
How does the Wi‑Fi control work?
The built‑in ESP32 module hosts a web interface that can be accessed from any device on the same network. Through this interface, you can upload G‑code files, start or pause jobs, and adjust settings in real time, eliminating the need for a direct USB connection.
Can I add a laser module to this router?
Yes, the design supports interchangeable heads. A compatible laser module can be mounted in place of the trim router, and the GRBL firmware includes laser‑specific commands for power control and safety interlocks.
Is there a warranty or after‑sales service?
All AnoleX CNC routers come with a one‑year limited warranty covering manufacturing defects. Our support team is available for troubleshooting, firmware updates, and parts replacement throughout the warranty period and beyond.
What software is compatible with this machine?
The router works with any GRBL‑compatible software, including Universal Gcode Sender (UGS), Fusion 360, VCarve, Easel, LightBurn, and many others. This flexibility lets you choose the design and CAM tools that best fit your workflow.
