Description
Product Overview

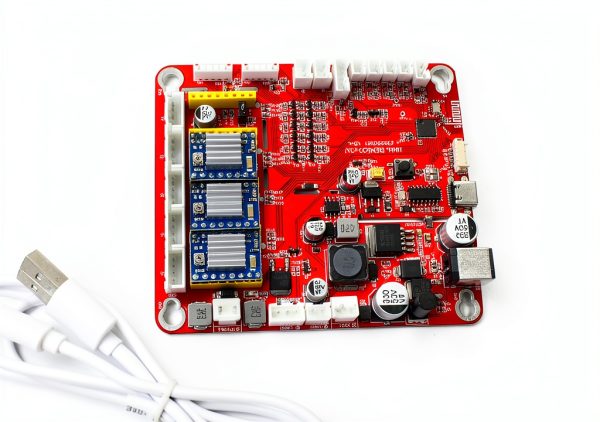

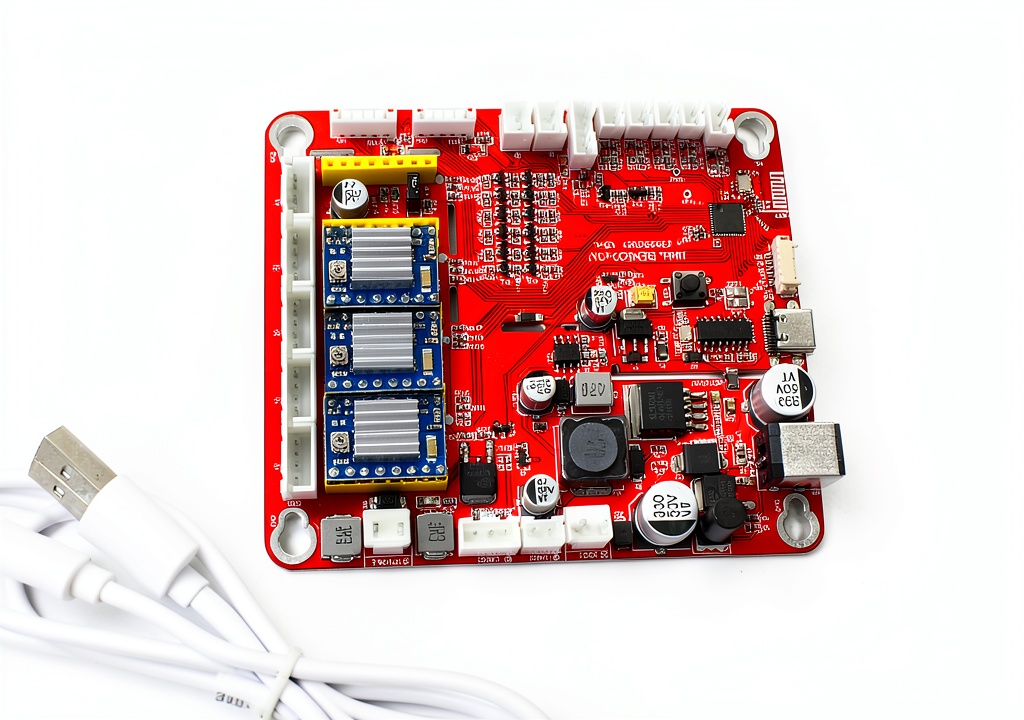

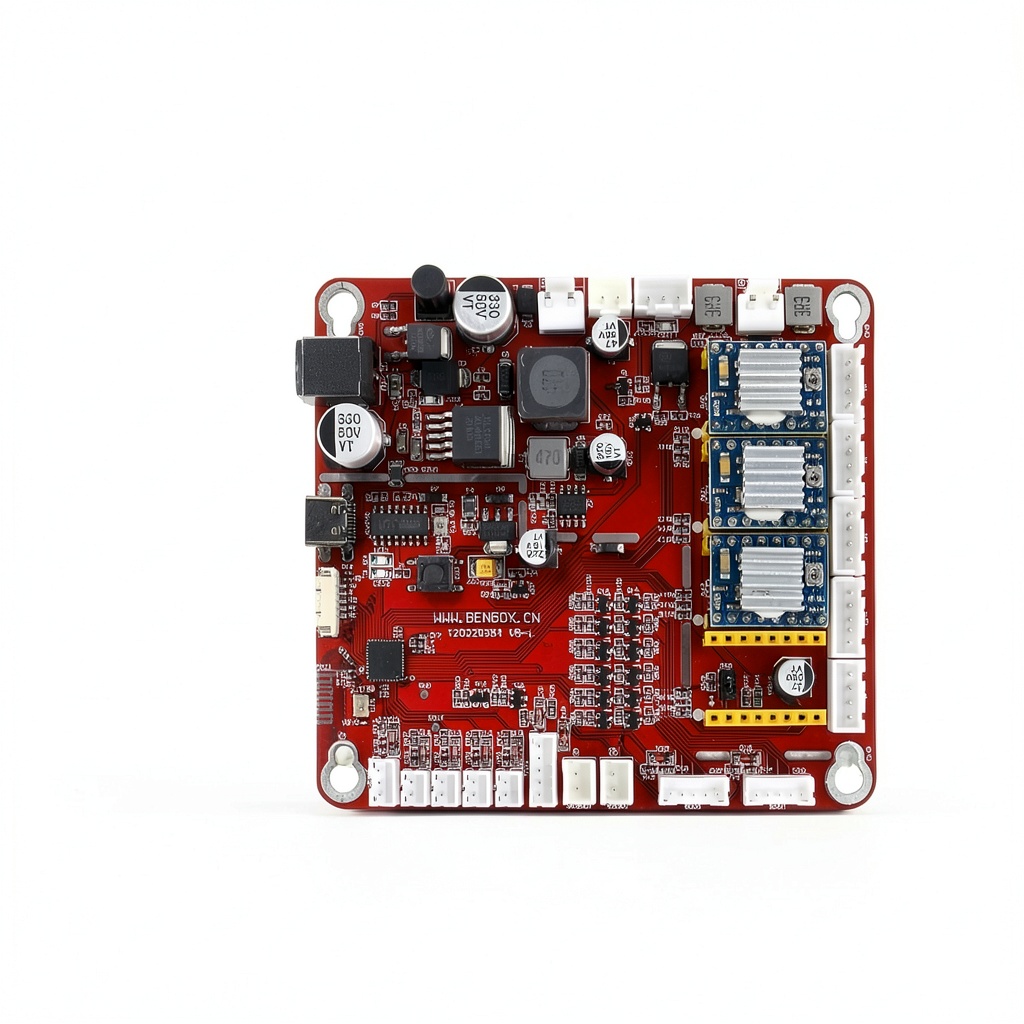

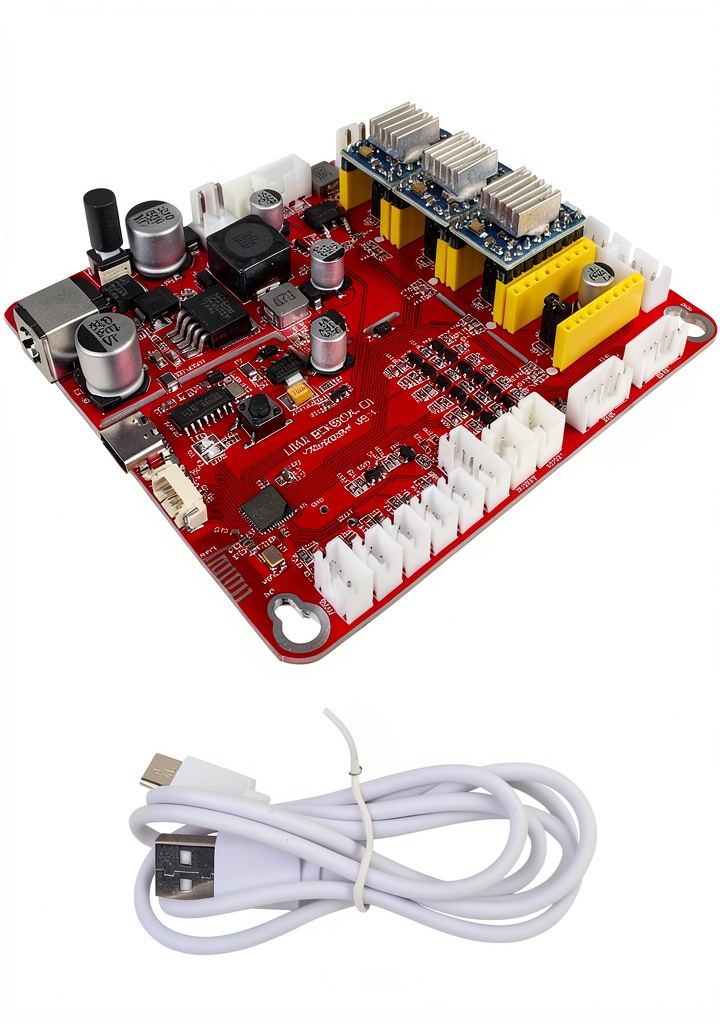

The RATTMMOTOR CNC Controller Board is engineered for hobbyists and small‑scale manufacturers who need a compact yet powerful solution for multi‑axis machining. Built around a robust CH340 USB interface, the board accepts a flexible 12‑24V DC power supply, with a recommended 24V for optimal performance. Its plastic enclosure keeps weight low at 6.8 ounces while providing sufficient durability for daily workshop use. The board supports up to four axes—X, Y, Z, and A—allowing complex engraving and routing tasks that would otherwise require multiple controllers. Integrated limit switches on each axis automatically halt motion when travel limits are exceeded, protecting both the machine and the workpiece. A dedicated power switch adds an extra layer of safety, ensuring the system can be quickly shut down during maintenance or emergencies.
Usage

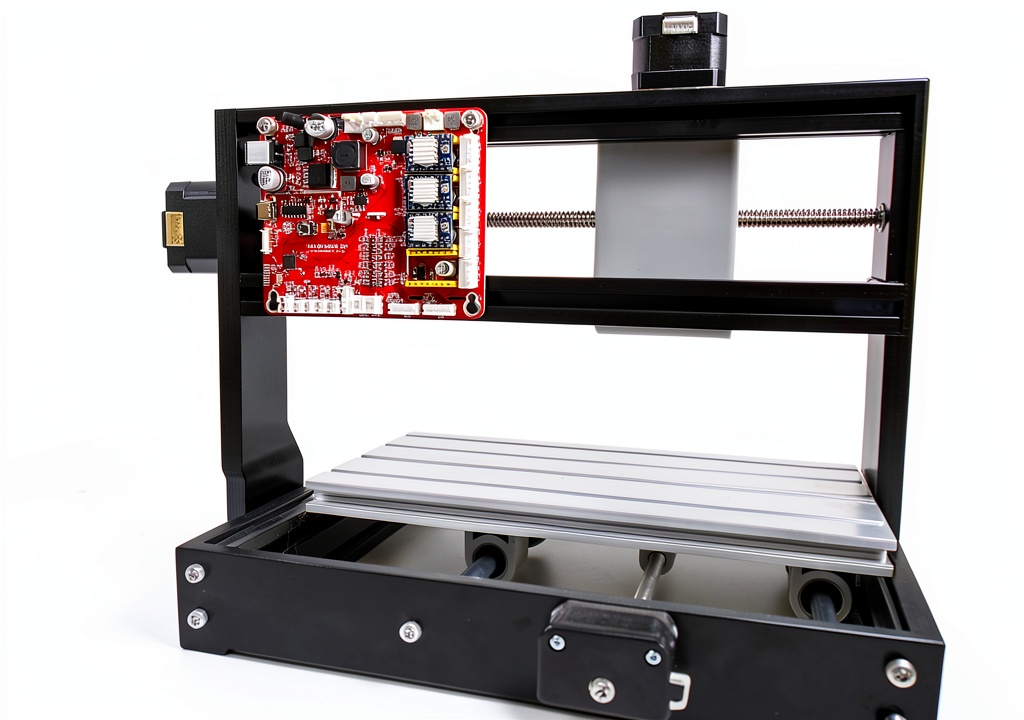

This controller is compatible with Windows XP through Windows 10 (both 32‑ and 64‑bit) as well as popular Linux distributions, giving users the freedom to choose their preferred operating environment. It works seamlessly with GRBL‑compatible software such as LiteFire, enabling precise control over stepper motors rated up to 2 A (recommended 1.5 A) and a wide range of NEMA‑17 or NEMA‑23 motors. The board also accommodates spindle modules from 0.5 W to 20 W and can drive spindles up to 20 000 RPM, making it suitable for wood, acrylic, PCB, and soft‑metal routing. Whether you are building a mini CNC router for hobby projects, a desktop engraving machine for personalized gifts, or a prototype milling system for rapid part development, this controller delivers consistent, repeatable results.
Why Choose Us

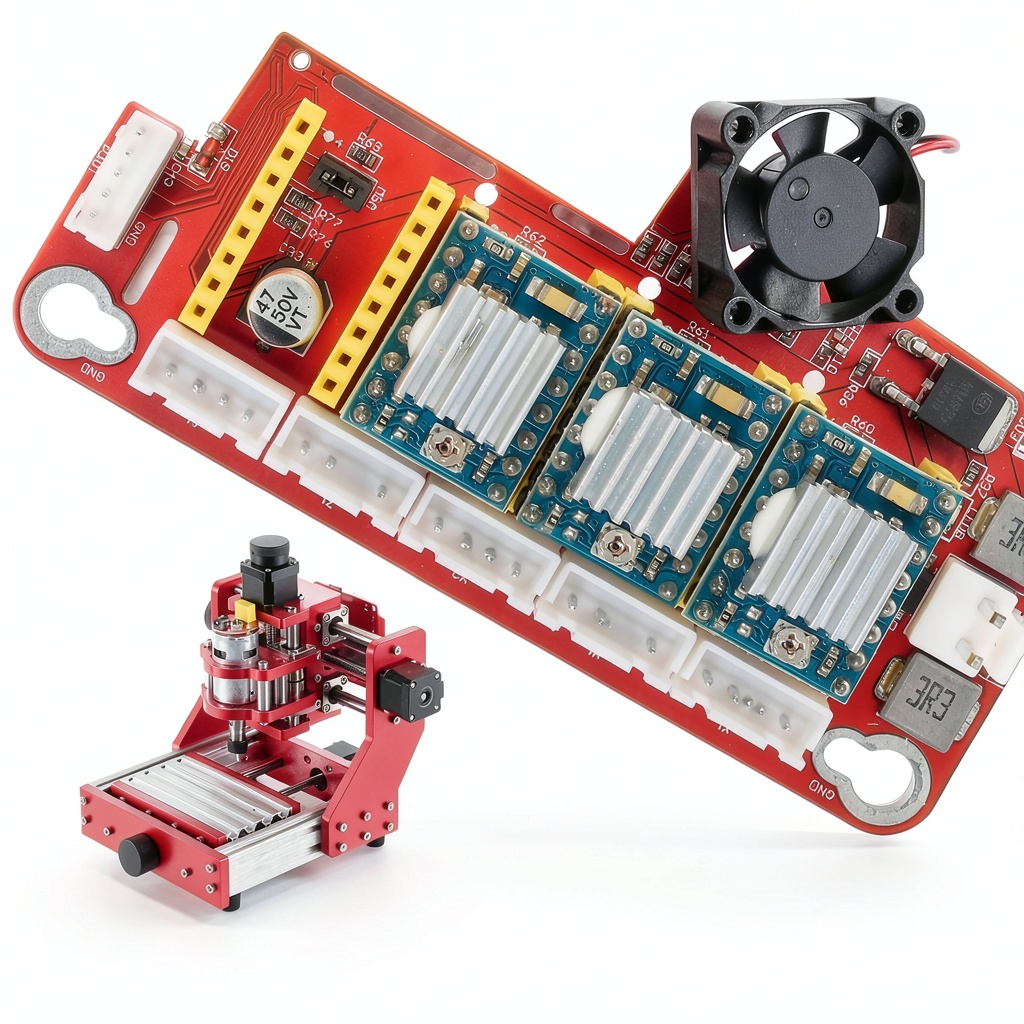

Choosing the RATTMMOTOR controller means investing in a product that balances affordability with professional‑grade features. The board’s solid plastic housing is designed to resist heat buildup, while an internal silent fan provides active cooling without adding audible noise to the workshop. Each unit undergoes a rigorous quality‑assurance process, ensuring that the USB communication remains stable even under heavy data loads. The manufacturer, RTM, backs the product with responsive customer support and a clear warranty policy, giving users confidence that any technical questions or component issues will be addressed promptly. Additionally, the controller’s open‑source firmware allows advanced users to customize motion parameters, expand functionality, or integrate additional sensors as their projects evolve.
Key Features
- Four‑axis GRBL control enables complex 3D engraving and multi‑tool operations.
- Wide 12‑24V input range with recommended 24V for stable power delivery.
- USB CH340 interface ensures plug‑and‑play connectivity with major operating systems.
- Supports spindles up to 20 000 RPM and stepper motors up to 2 A for versatile machining.
- Dedicated after‑sales support and firmware updates keep the system future‑proof.
FAQ
What stepper motor specifications are compatible with this controller?
The board works with 12 V stepper motors up to 2 A per phase, though we recommend staying at 1.5 A for optimal heat management. NEMA‑17 and NEMA‑23 form factors are fully supported.
Can I use this controller with a Linux‑based CNC software?
Yes, the controller is compatible with Linux distributions and works with GRBL‑compatible applications such as LinuxCNC, bCNC, and others that support USB serial communication.
Is the controller able to handle a spindle larger than 20 W?
The board is rated for spindle modules up to 20 W. For higher‑power spindles, an external driver or dedicated spindle controller is recommended to avoid overloading the board.
How do the limit switches improve safety?
Each axis includes a limit switch that instantly stops motion when the travel range is exceeded, preventing mechanical collisions and protecting both the machine and the workpiece.
What warranty does the product include?
RTM provides a one‑year limited warranty covering manufacturing defects, along with access to technical support for troubleshooting and firmware updates.
